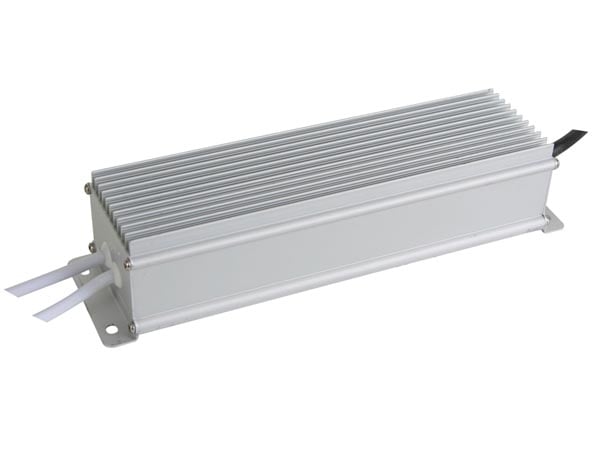

LED P.Supply Constant Voltage 12VDC/80W, IP67

VELLEMAN
Availability:

Only 2 left in stock


84,00 incl.VAT

Only 2 left in stock

input voltage: 170-250VAC / 50-60Hz ll output voltage: 12VDC +/- 0.5V ll max. input current: 0.56A ll max. output current: 6.7A ll max. output power: 80W ll dimensions: 240 x 67 x 50mm ll cable length: 300mm ll weight: 1200g ll housing: aluminium ll connection: leads ll protection class: IP67 ll storage temperature: -40°C ~ 80°C ll operating temperature: -25°C ~ 50°C

The outputs wires are connected in parallel, the indicated power is de max. total outpout power. ll short circuit protection ll overload protection ll over voltage protection (255V) ll thermal protection (80°) ll waterproof protection IP67

Barcode: 5410329425678
