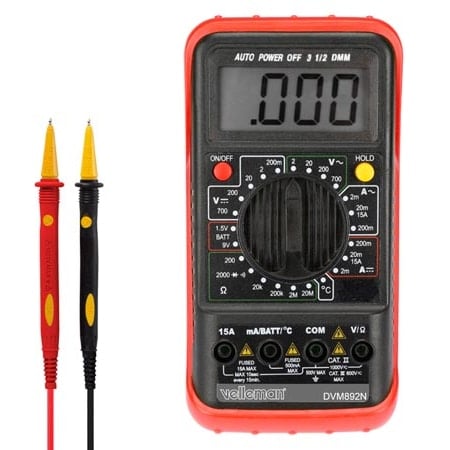

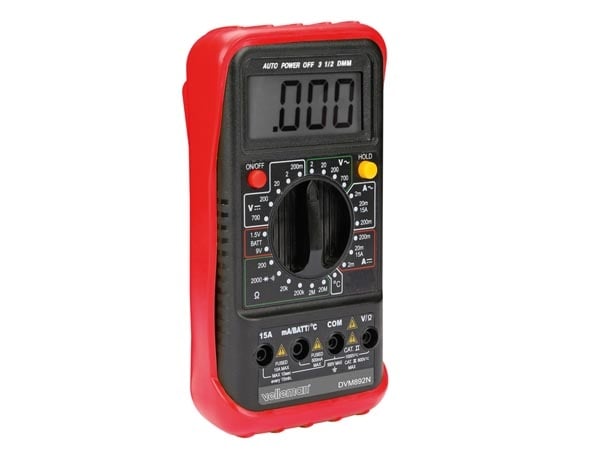

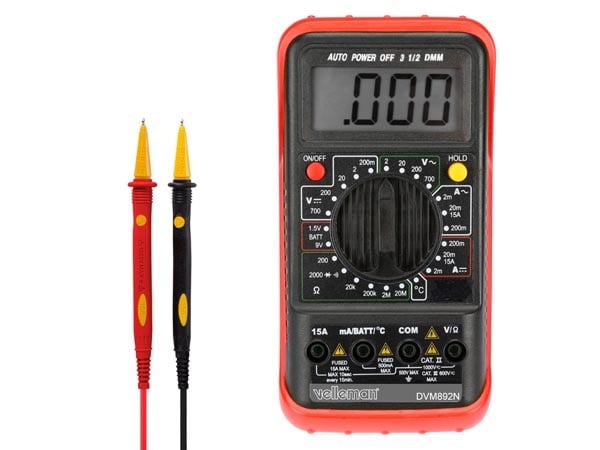

DIGITAL MULTIMETER - 24 RANGES / CAT II 700 V - CAT III 600 V / HOLD / AUTO POWER OFF / TEMP / 15 A AC & DC
DIGITAL MULTIMETER - 24 RANGES / CAT II 700 V - CAT III 600 V / HOLD / AUTO POWER OFF / TEMP / 15 A AC & DC
DIGITAL MULTIMETER - 24 RANGES / CAT II 700 V - CAT III 600 V / HOLD / AUTO POWER OFF / TEMP / 15 A AC & DC

DIGITAL MULTIMETER - 24 RANGES / CAT II 700 V - CAT III 600 V / HOLD / AUTO POWER OFF / TEMP / 15 A AC & DC

Price: € 54,00 incl. 19% VAT

Features

  • CAT. II 700 V / CAT. III 600 V
  • 24 ranges
  • DMM with automatic polarity indication and 3 1/2-digit LCD display
  • measurements: DC current up to 15A, AC and DC voltage up to 700 V resistance up to 20 megohm
  • temperature, diode, battery and continuity test with buzzer
  • low-battery indication and data-hold function

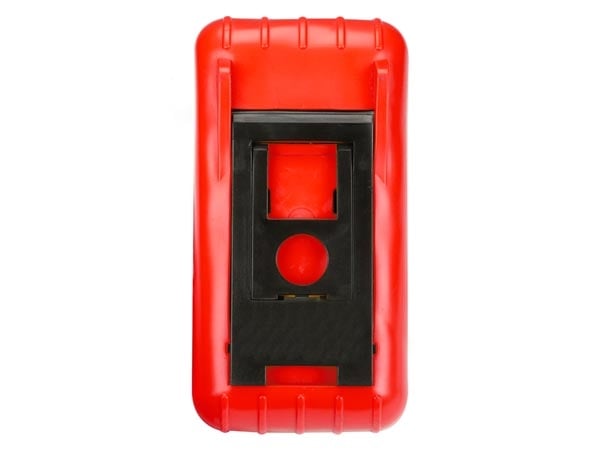

  • with protective holster

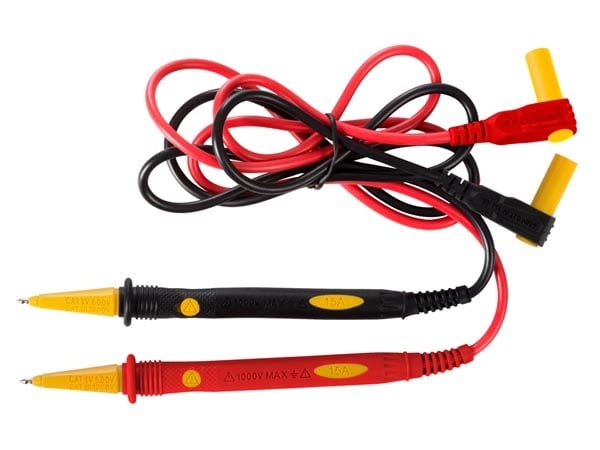

  • with separate test leads (incl.)

Specifications

  • DC voltage: 200 mV / 2 / 20 / 200 / 700 V
  • basic accuracy: ± 0.5% of rdg ± 2 digits for 200 mV - 200 V range / ± 0.8% of rdg ± 2 digits for 700 V range input impedance: 10 Mohm maximum input: 700 V overload protection: 700 V DC or AC rms AC voltage: 2 / 20 / 200 / 700 V
  • basic accuracy: ± 0.8% of rdg ± 3 digits for 2 V - 200 V range / ± 1.2% of rdg ± 3 digits for 700 V range input impedance: 10 Mohm frequency range: 40-500 Hz maximum input: 700 V DC current: 2 m / 20 m / 200 m / 15 A
  • basic accuracy: ± 1.2% of rdg ± 2 digits for 2 m - 20 mA range / ± 1.5% of rdg ± 2 digits for 200 mA range / ± 2.0% of rdg ± 3 digits for 15 A range overload protection: 0.5 A / 1000 V fuse in mA range, 15 A / 1000 V fuse in 15 A range AC current: 2 m / 20 m / 200 m / 15A
  • basic accuracy: ± 1.5% of rdg ± 3 digits for 2 m - 20 mA range / ± 2.0% of rdg ± 3 digits for 200 mA range / ± 2.5% of rdg ± 5 digits for 15 A range overload protection: 0.5 A / 1000 V fuse in mA range, 15 A / 1000 V fuse in 15 A range frequency range: 40-500 Hz resistance: 200 / 2 k / 20 k / 200 k / 2 M / 20 M Ohm
  • basic accuracy: ± 1.0% of rdg ± 3 digits for 200 Ohm range / ± 1.0% of rdg ± 2 digits for 2 kOhm~200 kOhm range / ± 1.5% of rdg ± 3 digits for 20 MOhm range overload protection: 700 V DC or AC rms capacitance: -
  • accuracy: - inductance: -
  • accuracy: - frequency: -
  • basic accuracy: - overload protection: - temperature: -50-150 / 150-800 °C
  • basic accuracy: ± 3°C ± 1 digits for -50°C~150°C range / ± 3% of rdg ± 1 digits for 150°C~800°C range overload protection: 0.5 A / 1000 V fuse battery test: 1.5 V / 9 V
  • basic accuracy: ± (5.0% rdg + 5 digits) overload protection: 0.5 A / 600 V fuse overload protection: 0.5 A / 1000 V fuse audible continuity measurement: built-in buzzer sounds if resistance is less than 50 Ohm
  • test voltage: ± 3 V diode measurement: test forward voltage of diode
  • test voltage: ± 3 V overrange : yes
  • continuity buzzer: yes
  • transistor test: yes
  • diode test: yes
  • low-battery indication: yes
  • maximum display: 1999
  • LCD display size: 61 x 26 mm
  • ranging mode: manual
  • data hold: yes
  • backlight: no
  • dimensions: 165 x 85 x 37 mm
  • weight (with battery): 215 g
  • power supply: 1 x 9 V 6LR61 battery (incl.)
  • packing: blister
  • accessories: manual / test leads / holster
  • auto power-off: yes
  • testlead probe (incl.): CAT III 1000V / CAT IV 600, 15 A, L = 75 cm

In Stock

QTY

Product Nr.
DVM892N
Barcode
5410329656553
